Advanced Ballistic Compensation

Shooting on a Rotating Planet

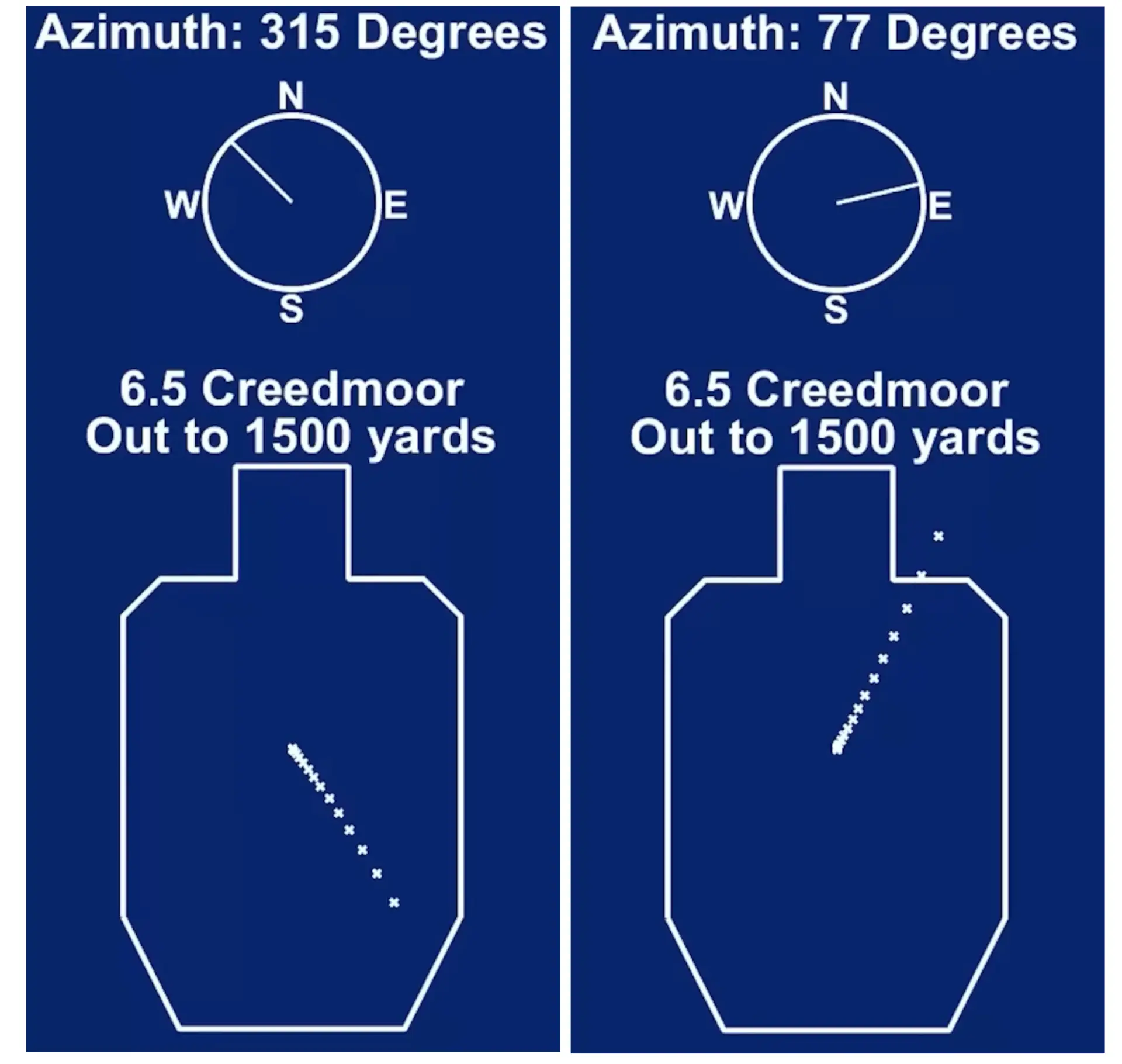

Let’s start with the least critical, yet certainly interesting factor—planetary rotation. Simply put, during the time between when a bullet leaves the barrel and hits the target, the Earth rotates slightly. Although the bullet retains some inertial momentum in the direction of the Earth’s rotation after the shot, once it loses contact with the barrel (neglecting the relatively minor influence of air), it is less affected by Coriolis force than objects that remain in contact with the ground. As a result—and this is a highly simplified explanation—if you shoot westward, the target will rotate upward and toward the bullet, causing the impact point to be slightly lower. Conversely, if you shoot eastward, the target will appear to drop and move away, making your shots land a bit higher. Shooting north or south results in the target “shifting” slightly to the side due to the Earth's rotation. A target to the north will be hit slightly to the right of point of aim, while a target to the south will be hit slightly to the left. In practice, however, shooters rarely fire exactly along a cardinal direction, which complicates things further due to angular drift. Additionally, these deviations depend on the shooter’s distance from the equator, the bullet’s velocity, and its ballistic coefficient. The longer the bullet is in flight, the more pronounced the effect. For context: a shooter at the 45th parallel firing a .30-06 cartridge (823 m/s, 176 gr, .564 BC A-Tip Match bullet from Hornady—these specifics will be used in other examples) at a target 910 meters west of their position, and then firing at a target the same distance to the east, would see a theoretical total point of impact shift of 20 cm. The vast majority of hunters can safely disregard this and skip any compensation. Subjectively, I would only factor this into calculations when shooting beyond 800–900 meters—which is well past the range most hunters are willing to engage. If this topic does interest you, pay close attention to the ballistic app you use—many don’t account for all these variables. Some include direction of fire but ignore the shooter’s latitude. Without this data, results can vary significantly, and if you're going to bother compensating for such effects, you'll want it to be as precise as possible. Applied Ballistics Quantum has a stellar reputation in this area, but its advanced features come at a price.

What If It’s Windy

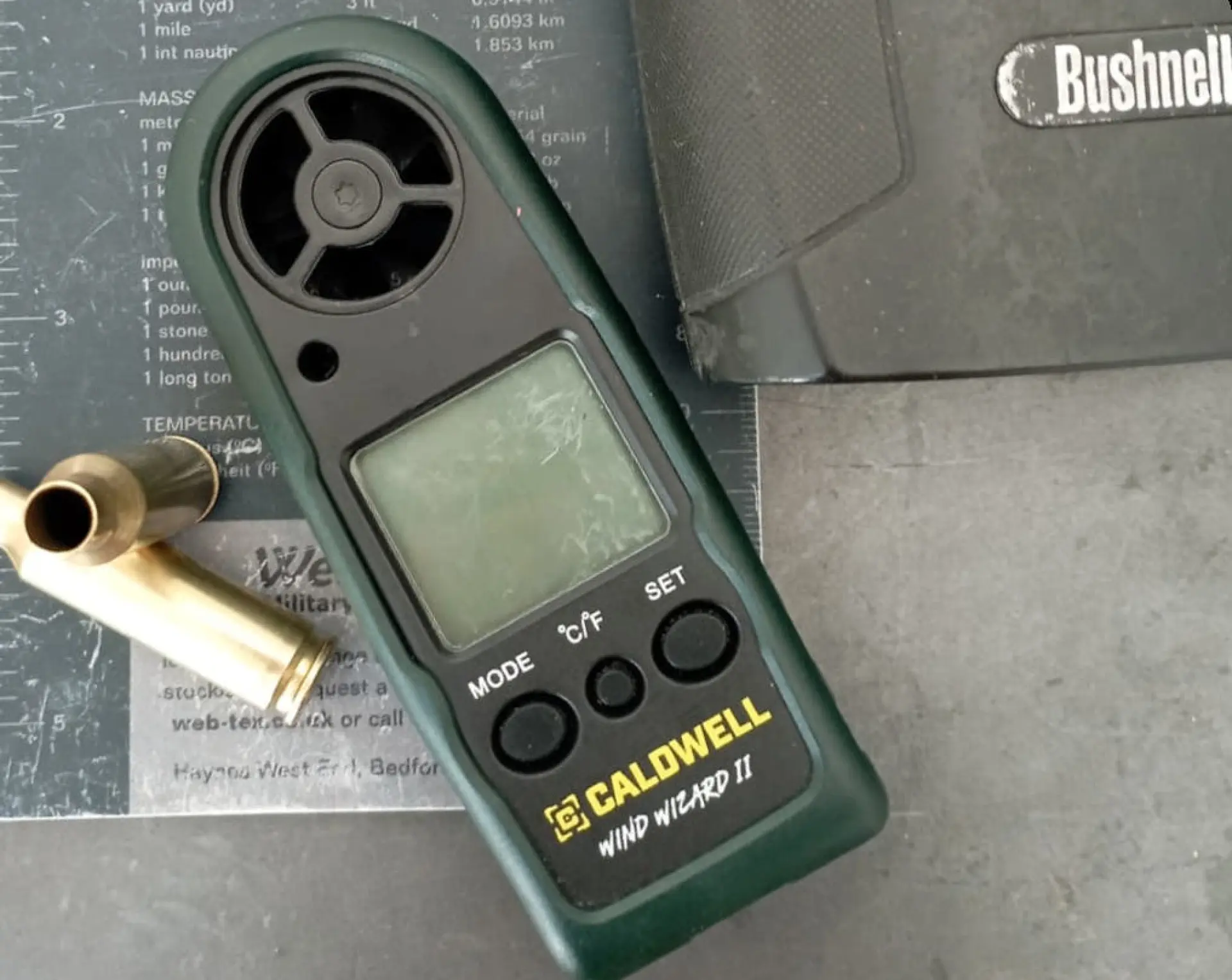

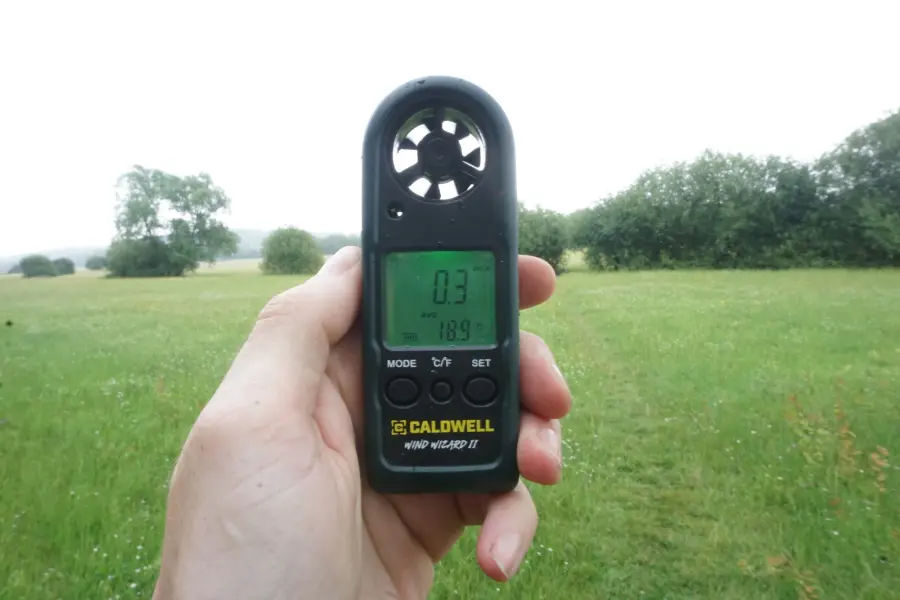

Among all the variables we’ve listed, the one that most significantly affects a bullet’s trajectory is wind direction and speed. Wind blowing from the left pushes the bullet to the right, and vice versa. How much this affects the shot depends on the bullet—its speed, shape, size, and ballistic coefficient (in general, a heavier bullet with a high BC is affected less)—as well as on wind intensity and direction. The longer the distance to the target, the greater the correction needed. With experience, you can roughly estimate wind based on visible heat waves or the classic “wet finger” method, but for accurate readings you’ll need a proper measuring device—an anemometer. For our purposes, compact handheld anemometers that fit in a pocket work well. You can buy them for a few dozen dollars online or in outdoor and electronics shops. A basic “general-sports” version is usually sufficient, though it’s worth investing a bit more in a model tailored specifically to shooters. Some of these can be paired directly with ballistic calculators, but in most cases, you’ll need to manually enter the data. Inside the anemometer is a small “fan” that spins with the wind. The onboard electronics then calculate wind speed in meters per second or another unit. The reading process is simple—turn the device on, raise it above your head to avoid sheltering it from the wind, and slowly rotate along the horizon until you find the direction with the highest speed. This is the wind direction you’ll use for your corrections. Because wind speed fluctuates, you should work with an average. If you’re not in a hurry and your anemometer has an averaging function, take a two-minute reading. Enter the wind speed and direction into your ballistic program, which will then calculate the necessary compensation.

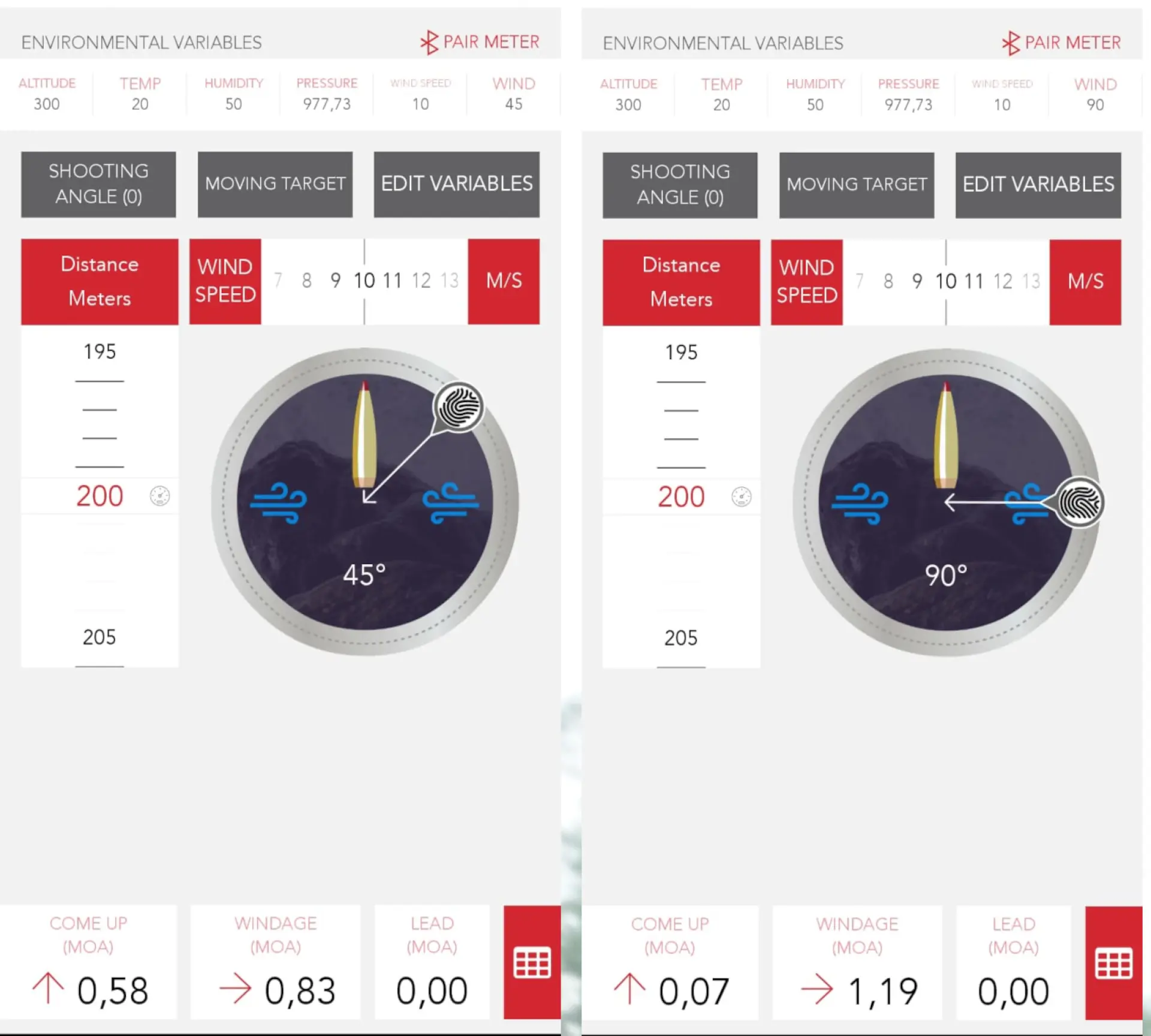

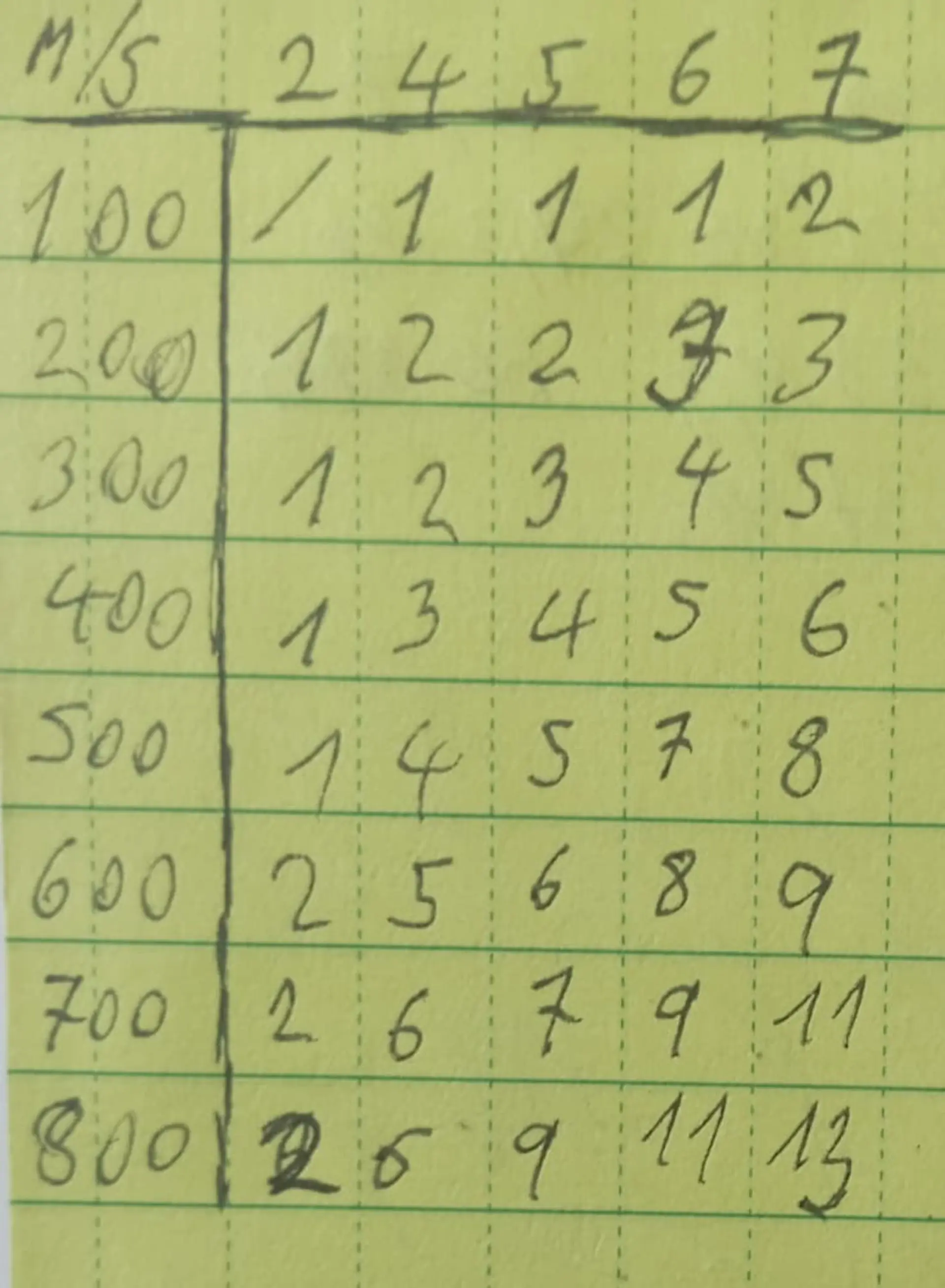

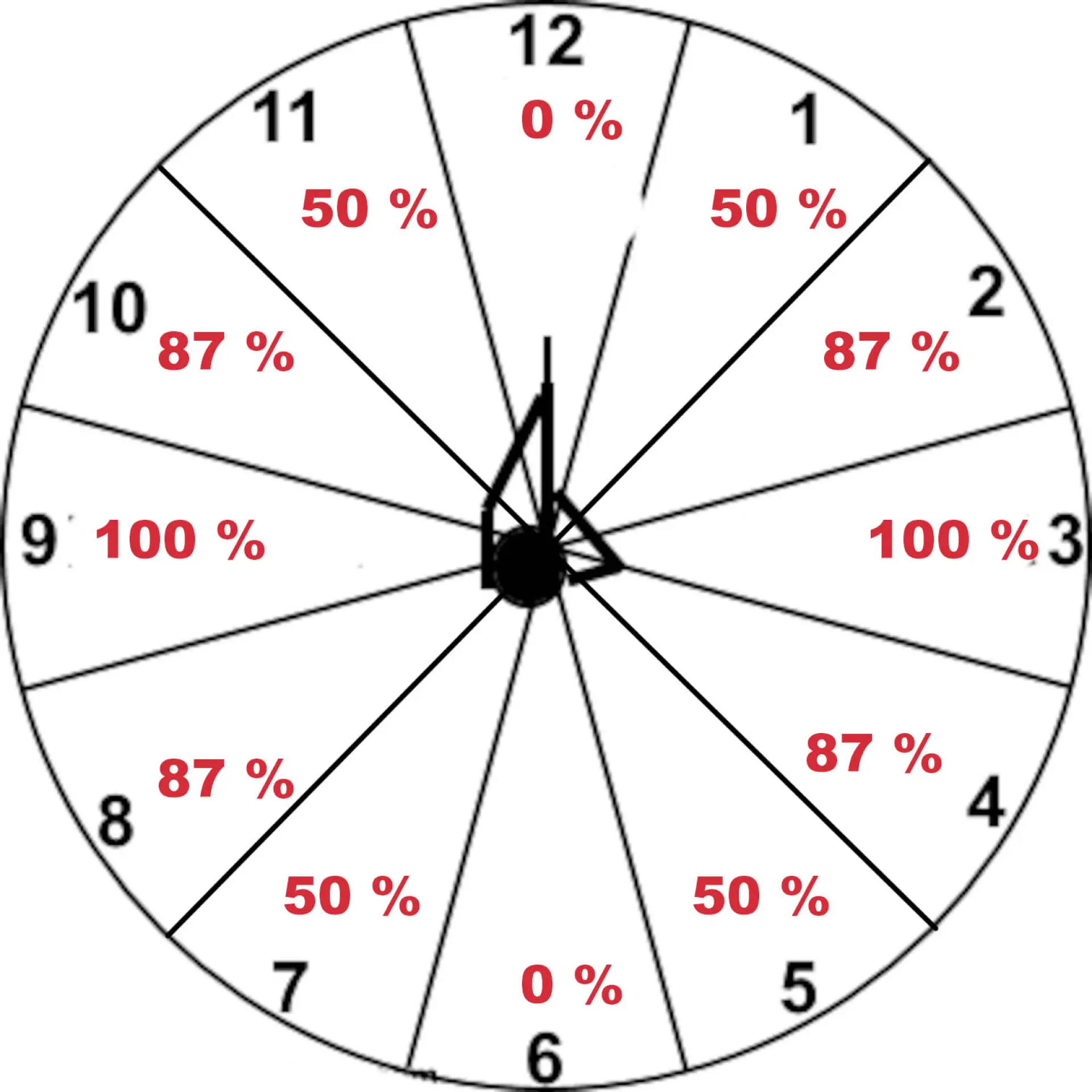

Creating an offline wind cheat sheet is a bit more complex, but well worth doing just to understand the full scope of the problem. Start by creating a simple table that works with crosswinds—wind hitting the bullet at a 90° angle. Your ballistic app will generate a wind drift chart at set intervals (e.g. every 100 meters), which you transcribe into columns based on wind speed. See example in the photo. But real-world scenarios are more complicated. If the wind hits the bullet at a 45° angle, its effective force is about 71% compared to a full 90°. If you use a “12 o’clock” clock face model and average out directions, you’ll end up with the adjustment ratios shown in our graphic. Example: You’re shooting at 500 meters with a 6 m/s wind coming from the 5 o’clock direction. From your wind chart, you find that a full-value 3 o’clock wind requires 1.5 MOA of adjustment. Since wind from 5 o’clock affects the bullet at only about 50% strength, you’ll dial in half the correction—0.75 MOA. With a bit of practice, this process becomes intuitive and relatively quick. However, wind shear—sudden changes in wind direction or strength over distance—can ruin your reading. Your anemometer only measures wind at your position; 300 meters downrange, the wind could be completely different, and that’s harder to account for. Terrain features also influence wind—e.g., a slope or ridge may create dead zones—so local knowledge and experience are essential.
